홈 제품안내 Pneumatic actuator RD/RS

RD/RS




Part List

rack pinion part list

NOPart NameMaterial
1BodyAluminum Alloy
2ShaftSteel Alloy
(Nickel Plated)
3StopperSteel Alloy
4Bushing (Top)Engineering Plastic
5Body O-ring (Top)NBR
6Bushing (Bottom)Engineering Plastic
7Bushing (Bottom)NBR
8Body Washer (Bottom)Engineering Plastic
9Shaft Roller (Bottom)Stainless Steel
10Body Snap-ringStainless Steel
11PistonAluminum Alloy
NOPart NameMaterial
12Piston O-ringNBR
13Piston Guide-ringEngineering Plastic
14Piston PadEngineering Plastic
15CoverAluminum Alloy
16Cover O-ringNBR
17Cover BoltSteel Alloy
18Spring UnitSteel Alloy
19Adjust BoltSteel Alloy
20Adjust O-ringNBR
21Adjust WasherSteel Alloy
22Adjust NutSteel Alloy

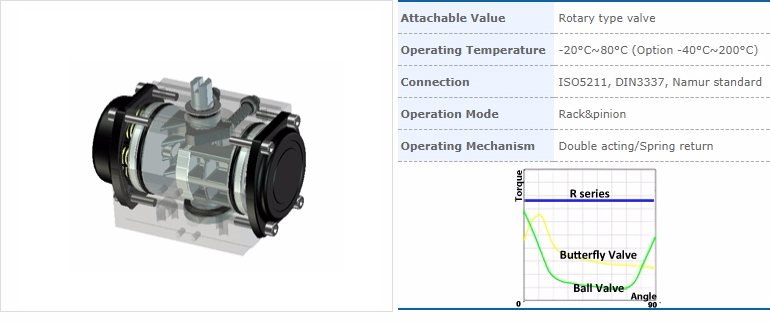

Operating Mechanism

Double actingAction "A"rack pinion double acting

                                                             torque table dimension table

Spring returnAction "A"
(Fail Closed)		rack pinion spring return
Action "B"
(Fail Open)		rack pinion single acting

                                                             torque table dimension table
